Home / Products / cpus / ASRock EP2C612D8-8R SSI ATX Server Motherboard Dual Socket LGA 2011 R3

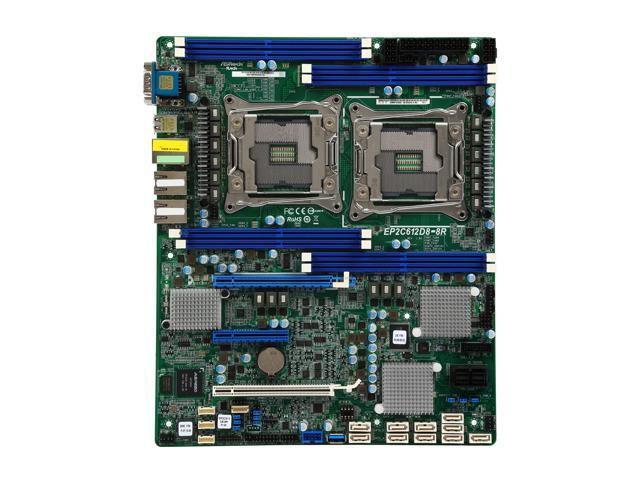

ASRock EP2C612D8-8R SSI ATX Server Motherboard Dual Socket LGA 2011 R3

    Summary:

  • ATX 12"x10"
  • Dual Socket LGA 2011 R3 support Intel Xeon processor E5-2600 & v3/v4 series
  • Supports DDR4 2400/2133/1866/1600 R DIMM AND LR DIMM, 8 x DIMM
  • Supports 10 x SATA3 6.0 Gb/s by Intel C612, 2 xminiSAS HD connectors by LSI3008 (8 ports, support SATA/SAS 12 Gb/s)
  • Supports 2 PCIe3.0x 16, 1 PCIe 3.0 x8
  • Integrated IPMI 2.0 and KVM with Dedicated LAN
  • Support 2x GLAN by Intel i350
Availability: Currently Unavailable
Brand: ASRock
BrandASRock
ModelEP2C612D8-8R
Dimensions14.30 x 12.90 x 2.70 Inches
CPU Socket TypeDual Socket LGA 2011 R3
CPU TypeDual Intel Xeon processor E5-2600 & v3 series
Other ChipsetIntel C612
Max Memory Supported
Back I/O PortsVGA Port:1 x D-Sub, Serial Port:1 (COM1), USB 2.0 Port:2 Type-A (USB2.0), USB 3.2 Gen1 Port:2 Type-A (USB3.2 Gen1), RJ45:2 RJ45 (1GbE), Dedicate LAN:1 dedicated IPMI
ECC SupportedYes
PCI Express 3．0 x163
SATAIntel C612 : 10 x SATA3 6 Gb/s
Additional RAID ControllerLSI3008: 8 x SAS3 12Gb/s (miniSAS HD connector)
Onboard Video ChipsetAspeed AST2400
LAN Chipset1 x Intel i350 (Support 2 xGLAN)
LAN Speed10/100/1000Mbps
COM1
Video PortsD-Sub
USB 1．1/2．02 x USB 2.0
USB 3．02 x USB 3.0
Features8 x 288-pin DDR4 DIMM slots (Support NVDIMM)2 x RJ45 Gigabit Ethernet LAN ports1 x RJ45 Dedicated IPMI LAN portApplication / Mission critical /and database or VM or HadoopServer with SSD acceleration.Compact Storage Server
Form FactorSSI ATX
